The Challenge
Getting a 2,000-tonne press to an assembly area inaccessible to low-bed trucks
The automotive client required a 2,000-tonne Schuler press to be transported and installed in Bursa. Low-bed trucks could not access the press assembly area, so the delivery sequence needed a separate internal transport method after unloading.
The installation also required mechanical and electrical assembly, piping and multiple heavy lifts for the main press components.
Our Solution
SPMT transport followed by gantry and multi-crane assembly
The Turkey team unloaded the low-bed trucks and transferred the equipment to the assembly area using a Self-Propelled Modular Transporter (SPMT). A supervising team from Germany included site management, electrical, piping and commissioning personnel.
The press bed, slide and crown were assembled with a gantry. Cranes rated at 35, 75 and 120 tonnes were used for connecting rods, connecting-rod shafts, moving bolsters and tie-rod shaft equipment.
Low-bed trucks unloaded before internal transfer
SPMT used because trucks could not access the assembly area
Mechanical and electrical assembly and piping completed

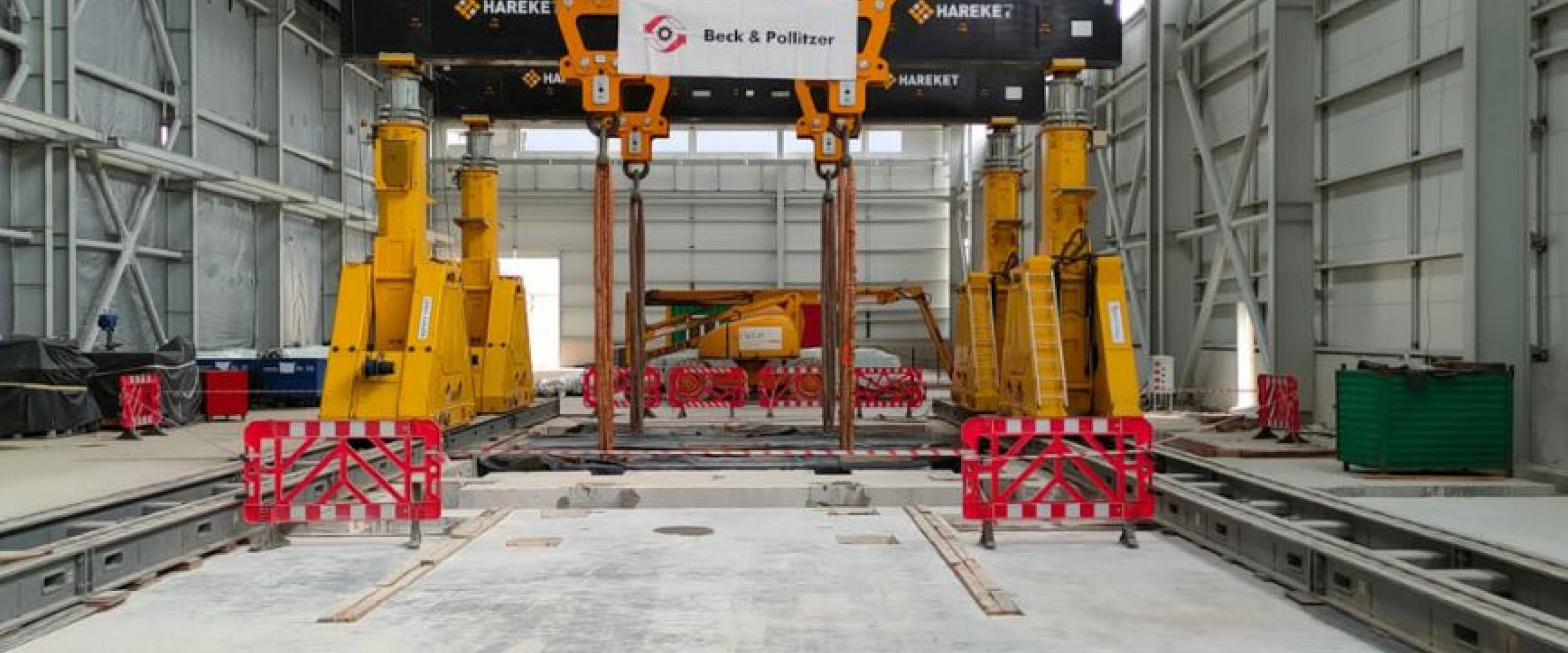

Press bed, slide and crown assembled using a gantry
35-, 75- and 120-tonne cranes used for associated press components
Cross-border supervision from Germany supported the Turkey team
Low-bed trucks unloaded before internal transfer |
SPMT used because trucks could not access the assembly area |
Mechanical and electrical assembly and piping completed |
Press bed, slide and crown assembled using a gantry |
35-, 75- and 120-tonne cranes used for associated press components |
Cross-border supervision from Germany supported the Turkey team |
Low-bed trucks unloaded before internal transfer |
SPMT used because trucks could not access the assembly area |
Mechanical and electrical assembly and piping completed |
Press bed, slide and crown assembled using a gantry |
35-, 75- and 120-tonne cranes used for associated press components |
Cross-border supervision from Germany supported the Turkey team |
Low-bed trucks unloaded before internal transfer
SPMT used because trucks could not access the assembly area
Mechanical and electrical assembly and piping completed
Press bed, slide and crown assembled using a gantry
35-, 75- and 120-tonne cranes used for associated press components
Cross-border supervision from Germany supported the Turkey team
-
Low-bed trucks unloaded before internal transfer
-
SPMT used because trucks could not access the assembly area
-
Mechanical and electrical assembly and piping completed
-
Press bed, slide and crown assembled using a gantry
-
35-, 75- and 120-tonne cranes used for associated press components
-
Cross-border supervision from Germany supported the Turkey team
The Outcome
2,000-tonne press transported, assembled and installed in Bursa
The transport and installation project was completed, covering internal SPMT movement, press assembly, electrical work and piping.
Press capacity
2,000 tonnes
Programme
411 project days
Cranes
35, 75 and 120 tonnes
